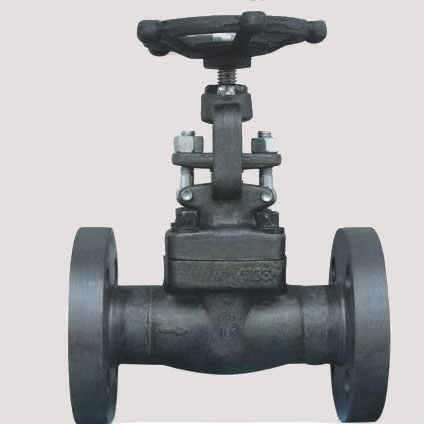

Flanged End Globe Valve

  Flanged End Globe Valve

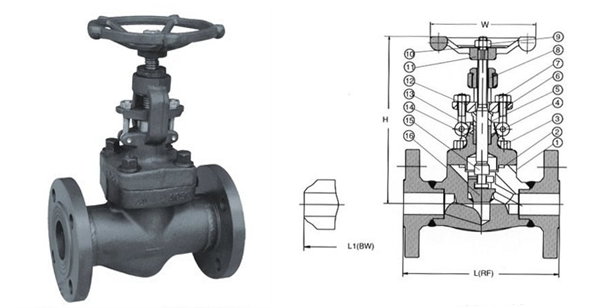

Standard Material Specification

NO.Part NameCS to ASTM

AS to ASTM

SS to ASTM
Type A105Type F22Type F304(L)Type F316(L)
1BodyA105A182 F22A182 F304(L)A182 F316(L)
2GasketCorrugated SS+graphiteSS+PTFE
3Bonnet BoltA193 B7A193 B16A193 B8A193 B8M
4PinA276 420A276 304
5GlandA276 410A182 F304(L)A182 F316(L)
6Gland EyeboltA193 B7A193 B16A193 B8A193 B8M
7Gland NutA194 2HA194 4A194 8A194 8M
8Yoke NutA276 410
9H.W.NutA194 2HA194 4A194 8A194 8M
10NameplateSS
11HandwheelA197
12Gland FlangeA216 WCBA351 CF8
13Stem PackingFlexible GraphitePTFE
14BonnetA105A276 304A182 F304(L)A182 F316(L)
15StemA182 F6A182 F304A182 F304(L)A182 F316(L)
16DiscA276 420A276 304A276 304(L)A276 316(L)
Suitable MediumW.O.G.etcW.O.G.etcHNO3,CH3OOH etc
Suitable Temperature-29℃~425℃-29℃~550℃-29℃~180℃

Note:Other materials are available upon request.

     CS=Carbon Steel;AS=Alloy Steel;SS=Stainless Steel;


Dimension (mm) and Weight (Kg)

NPS1/2″3/4″1″11/4″11/2″2″
L(RF)
L1(BW)
150Lb108117127140165203
300Lb152178203216229267
600Lb165190216229241292
H(OPEN)150Lb~300Lb166171207240258330
600Lb171207240258330380
W100100125160160180
Weight150LbRF4.56.99.813.519.528.0
BW2.33.67.88.212.015.0
300LbRF4.87.711.016.821.232.6
BW2.84.08.59.212.616.8
600LbRF5.67.812.517.023.538.8
BW3.44.79.210.513.318.9
