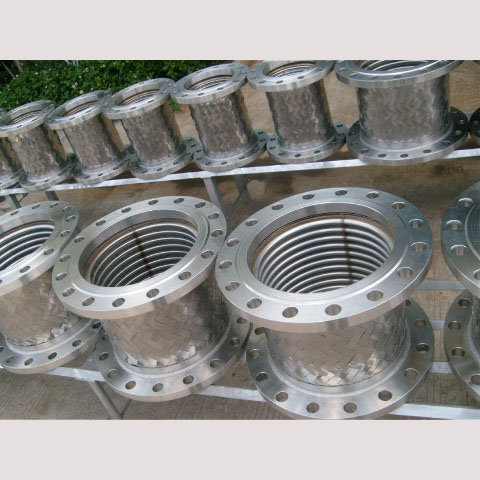

Braid Flexible Hose



Braid Flexible Hose

    Application
1. Reducing noise, Vibration Isolating
using small-scale pump to link with tube route, High static pipe vibration noise will be reduced greatly .
2. Compensate Misalignment
The stress due to the misaligment of the pipeline installation can be eliminated
effectively throught the Ehase flexible connector.
3. Absorbtion of thermal expansion
By connecting the Ehase flexible connector, lateral and angular movement will
be greatly absorbed thus protecting and maintaining the pipes in your machines.


ItemPartsMaterialremark
1Tube endSUS304SUS316orC.S.
2Collar RingSUS304
3BellowsSUS304SUS-316/321
4Wire BraidsSUS304



PN
MPa
DN
Model
Size
length
L
mm
D
D1
n-d
d1
L1
L2
2.5
40
25JRL40A-L
39
110
4-Φ18
85
105
60
300-6000
50
25JRL50A-L
49
125
100
115
70
350-6000
65
25JRL65A-L
61
145
8-Φ18
120
125
75
400-6000
80
25JRL80A-L
75
160
135
130
80
100
25JRL100A-L
99
190
8-Φ23
160
145
90
500-6000
125
25JRL125A-L
123
220
8-Φ25
188
155
95
550-6000
150
25JRL150A-L
149
250
218
200
25JRL200A-L
198
310
12-Φ25
278
170
110
600-6000
250
25JRL250A-L
248
370
12-Φ30
332
175
300
25JRL300A-L
298
430
16-Φ30
390
200
135
1.6
40
16JRL40A-L
39
110
4-Φ18
85
105
60
300-6000
50
16JRL50A-L
49
125
100
115
70
350-6000
65
16JRL65A-L
61
145
120
125
75
400-6000
80
16JRL80A-L
75
160
8-Φ18
135
130
80
100
16JRL100A-L
99
180
155
145
90
500-6000
125
16JRL125A-L
123
210
185
155
95
550-6000
150
16JRL150A-L
149
240
8-Φ23
210
200
16JRL200A-L
198
295
12-Φ23
265
170
110
600-6000
250
16JRL250A-L
248
355
12-Φ25
320
175
300
16JRL300A-L
298
410
375
200
135
350
16JRL350A-L
348
470
16-Φ25
435
215
150
700-6000
400
16JRL400A-L
398
525
16-Φ30
485
235
160






PN
MPa

DN


L
mm
D
D1
n-d
d1
L1
L2
1.0
40
10JRL40A-L
39
110
4-Φ18
85
105
60
300-600
50
10JRL50A-L
49
125
100
115
70
350-600
65
10JRL65A-L
61
145
120
125
75
400-6000
80
10JRL80A-L
75
160
135
130
80
100
10JRL100A-L
99
180
8-Φ18
155
145
90
550-6000
125
10JRL125A-L
123
210
185
155
95
550-6000
150
10JRL150A-L
149
240
8-Φ23
210
200
10JRL200A-L
198
295
265
170
110
600-6000
250
10JRL250A-L
248
350
12-Φ23
320
175
300
10JRL300A-L
298
400
368
200
135
350
10JRL350A-L
348
460
16-Φ23
428
215
150
700-6000
400
10JRL400A-L
398
515
16-Φ25
482
235
160
1.6
40
6JRL40A-L
39
100
4-Φ14
80
105
60
300-6000
50
6JRL50A-L
49
110
90
115
70
350-6000
65
6JRL65A-L
61
130
110
125
75
400-6000
80
6JRL80A-L
75
150
4-Φ18
125
130
80
100
6JRL100A-L
99
170
145
145
90
500-6000
125
6JRL125A-L
123
200
8-Φ18
175
155
95
550-6000
150
6JRL150A-L
149
225
200
200
6JRL200A-L
198
280
255
170
110
600-6000
250
6JRL250A-L
248
335
12-Φ18
310
175
300
6JRL300A-L
298
395
12-Φ23
362
200
135
350
6JRL350A-L
348
445
412
215
150
700-6000
400
6JRL400A-L
398
495
16-Φ23
462
235
160

Temperature Correction Table

Temp
(°F)
304,
316L Stainless
321
Stainless
Bronze
Monel
Hastelloy
Inconel
Room1.001.001.001.001.001.00
150.95.97.92.93.97.99
200.91.94.89.90.94.98
250.88.92.86.87.92.97
300.85.88.83.83.91.97
350.81.86.81.82.89.96
400.78.83.78.79.87.95
450.77.81.75.77.86.94
500.77.78.73.85.94
600.76.74.72.84.92
700.74.70.71.82.90
800.73.66.70.81.89
900.68.62.79.87
1000.60.90.78.86
1100.58.58.75.84
1200.53.55.73.82
1300.44.50.69.79
1400.35.44.65.77
1500.26.40.74
Pressure

The nominal pressure ratings of flexible metal hose vary according to type, material and size. Pressure is affected by many other factors such as temperature, pulsating conditions and bending stresses, under actual working conditions.

Media

The type of media being conveyed through the hose is important to consider during the selection process. Metal hose can be corroded by the material flowing through it and the outside environment. A metal hose can be selected that is resistant to the proposed media for almost all applications. Since metal hose has a thin wall, it will not have the same total life as a heavier walled tube
or pipe.

Size

The size of flexible metal hose is specified by the nominal diameter. When choosing a metal hose for a particular application, the existing piping will normally dictate the size needed. Flow rate, velocity and pressure drop considerations may also influence the selection of the hose size.

End Fittings

There is an extensive range of end fittings available for flexible metal hose. These end fittings include male and female pipe threads, unions, flanges, flared tube fittings or other specially designed connectors. End fittings are attached by welding, silver brazing, soldering or other by other mechanical means, depending on the type of hose.

Motion

Flexible metal hose is used in four types of applications:

• To correct misalignment
• To provide flexibility in manual handling operations
• To compensate for regular or constant movement
• To absorb vibrationIn all types, careful hose selection, design of the assembly and installation are important for optimal service life. Mechanical design and the flexibility of its material determine the flexibility of a hose.
