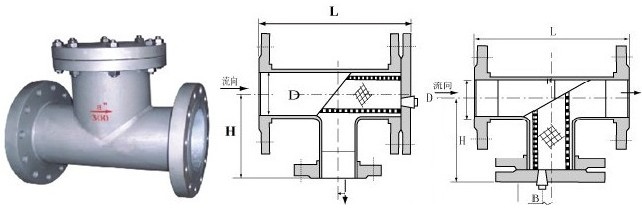

T Strainer
FEATURES | Size: 2″~40″ | Class: 150~300Lb | Reduced & Full Port | Integral Seat | T Type Structure |
| SPECIFICATIONS | Design | ASME B16.34 | Face to Face | ASME B16.10 | End Flange | ASME B16.5 | BW End | ASME B16.25 | Test | API 598 |
|
MAIN PARTS AND MATERIALS | No. | Parts Name | Material | 1 | Drain Valve | AISI 1035 | 2 | Nut | A194 2H | 3 | Bolt | A193 B7 | 4 | Bonnet | A216 WCB | 5 | Gasket | SS304+Graphite | 6 | Screen | SS304 | 7 | Body | A216 WCB |
|
Optional Body Material: A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex，etc.
