Flame Arrestor



Flame Arrestor

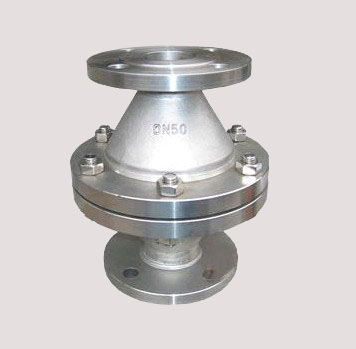

Flame Arrester is a safety device which is used for prevent flammable gas, liquid flame from spread and prevent flash back caused explosions. Usually it mounted on the storage tank and pipelines transfer and discharge flammable gas, such as the torch burning heating systems, petroleum gas recovery system or other flammable gas system.
Corrugated Blast-proof Arrester with compact structure, high reliability, the fire core with strong blast-proof and corrosion resistance and fire resistance and easy to cleaning which production from imported UK and Germany advanced technology, combined with our advanced processing equipment and perfect testing device. Particularly it is suitable for hydrogen, nitrogen, oxygen, liquefied gas and other special medium.

Technical Parameters
Suitable for petrochemicals flash-point lower than 60˚C, such as gasoline, kerosene, diesel oil, methylbenzene, etc.
Operating temperature: ≤480˚C
Shell materials: Carbon steel, Aluminum, Stainless steel (SUS304、SUS304L、SUS316、SUS316L) .

Fire arresting material: stainless steel corrugated plate
Ex degree: BS5501:IIA、IIB、IIC
Manufacture and inspection standard: refer to standard of GB5908-86.
Flange standard: HG20592~97PN1.0
If customer want to change pressure degree and use GB、SH、HGJ、JB、ANSI、JIS flange standard, please remark in the order contract。




DIN,GB

Size

Dimension  mm

D

K

DL

H

N-d

DN20

105

75

130

160

4×14

DN25

115

85

135

160

4×14

DN32

135

100

155

180

4×18

DN40

145

110

170

200

4×18

DN50

160

125

195

220

4×18

DN65

180

145

220

220

4×18

DN80

195

160

250

250

8×18

DN100

215

180

295

260

8×18

DN125

245

210

360

300

8×18

DN150

280

240

430

360

8×22

DN200

335

295

520

420

12×22



ANSI,API,ASME,JIS

Size

Dimension(mm)

D

K

DL

H

N-d

3/4″

98

70

130

160

4×15

1

108

79.5

135

160

4×15

1-1/4″

117

89

155

180

4×15

1-1/2″

127

98.5

170

200

4×15

2″

152

120.5

195

220

4×19

2-1/2″

178

139.5

220

220

4×19

3″

190

152.5

250

250

4×19

4″

229

190.5

295

260

8×19

5″

254

216

360

300

8×22

6″

279

241.5

430

360

8×22

8″

343

298.5

520

420

8×22
