API Forged steel globe valve
API Forged steel globe valve(150LBS-2500LBS)
Features:
Structure: BB, OS&Y
Body material: A105, LF2, F5, F11, F22, F304, F304L, F316, F316L
Specification:
Design standard: BS5352 /ANSI B16.34
Socket Welding as per ANSI B16.11
Threaded as per ANSI B1.20.1
Flange ends as per ANSI B16.5
Pressure test: API 598

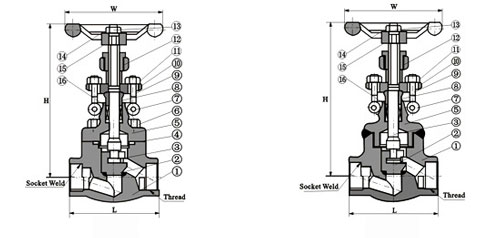

Main Parts and Material:
| NO. | Part Name | Carbon steel to ASTM | Alloy steel to ASTM | Stainless steel to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A276 410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | SS304+ graphite | Stainless steel + PTFE | ||
| 5 | Bonnet Bolt | A105 | A276 304 | A276 F304(L) | A276 F316(L) |
| 6 | Bonnet Bot | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A276 304 | ||
| 8 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 9 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 10 | Gland Flange | A216 WCB | A351 CF8 | ||
| 11 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Yoke Nut | A276 410 | |||
| 13 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 14 | Nameplate | Aluminum | |||
| 15 | Handwheel | A47 | |||
| 16 | Stem Packing | Flexible Graphite | PTFE | ||
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29Deg~425Deg | -29Deg~550Deg | -29Deg~180Deg | ||
| NPS | Conv. | 3/8″ | 1/2″ | 3/4″ | 1″ | 11/4″ | 11/2″ | 2″ | |
| Full |
| 3/8″ | 1/2″ | 3/4″ | 1″ | 11/4″ | 11/2″ | 2″ | |
| L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 | |
| H(OPEN) | 166 | 166 | 171 | 207 | 240 | 258 | 330 | 355 | |
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | |
| Weight | Bolted | 1.9 | 1.9 | 2.1 | 3.5 | 6.0 | 7.5 | 11.4 | 14.6 |
| Welded | 1.7 | 1.7 | 1.9 | 3.3 | 5.2 | 6.8 | 10.6 | 13.8 | |
