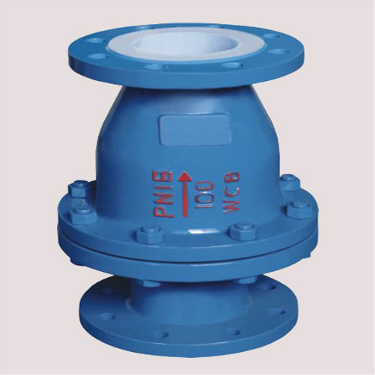

PTFE Lined Ball Check Valve

Meet design specification as per B 16.34 / Face to Face as per ANSI B 16.10 / Flange dimensions as per B 16.5
Testing Standard as per BS-EN 12266-1 / DIN-EN588 -1
Lining Standard as per ASTM F 1545
Ball Check valves have a hydraulically optimized design. The lining thickness (4.5mm) offers very high permeation resistance
The Full port design is engineered to minimize pressure drop and other improved flow characteristics
Can be installed either vertically and dependent up on application horizontally as well
Inside body with full lining guide for ball, guided ball for better sealing in horizontal position
A minimum differential pressure of 1 Bar is necessary so that the ball is pressed in to seat
Ball is properly shut off on soft seat sealing
Hollow Ball can also used for low opening differential pressure
The Valves are suitable for liquids, vapour, gas, corrosive hazardous, pure hot highly permeating media

Technical Details :

Size Range : 1”NB to 8”NB
Pressure Range : 0 to 10 Bar
Temperature Range : -60 oC to +200 oC
Vacuum resistance : Full (Vacuum up to 16 Bar)
Tightness : BS-EN-12266-1
Leakage Rate : D, Test Media: Gas
Leakage Class : as per Class VI shut off.
Body Material : S.G. Iron (NOD CI) / CF8 / CF8M / CD4MCu + Lined
Lining Material : FEP / PFA / PVDF / Ceramic / Antistatic PFA Lining
Spark Test : Thick liner 100% Inspected at 20 KVA

Optional Features :

“O”-Ring design available for Gas application for tight shut off.

Large sizes on request

Material

No.	Part	Cast Iron	Cast Steel	Stainless steel		Stainless steel
No.	Part	Z	C	P	R	PL	RL
1	Body/Bonnet	HT250	WCB	CF8	CF8M	CF3	CF3M
2	Disk/Stem	35	1Cr13	1Cr18Ni9	1Cr18Ni12Mo2Ti	00Cr18Ni10	00Cr17Ni14Mo2
3	Lining / Seat	PCTEF(F3),FEP(F46),PFA(F4),PP,PO
4	Bolt	WCB		1Cr17Ni2		1Cr18Ni9Ti
5	nut	PTFE(F4)		CF8		CF8

Size		L	D	D1	D2	f	b	Z-φd
DN(mm)	NPS(inch)	L	PN1.0MPa
15	1/2	108	95	65	45	2	14	4-φ14
20	3/4	117	105	75	55	2	16	4-φ14
25	1	127	115	85	65	2	16	4-φ14
32	5/4	140	135	100	78	2	18	4-φ18
40	3/2	165	145	110	85	3	18	4-φ18
50	2	203	160	125	100	3	20	4-φ18
65	5/2	216	180	145	120	3	20	4-φ18
80	3	241	195	160	135	3	22	4-φ18
100	4	292	215	180	155	3	22	8-φ18
150	6	356	280	240	210	3	24	8-φ23
200	8	495	335	295	265	3	26	8-φ23
250	10	622	390	350	320	3	28	12-φ23
300	12	698	440	400	368	4	28	12-φ23
350	14	787	500	460	428	4	30	16-φ23
400	16	914	565	515	482	4	32	16-φ25
450	18	978	615	565	532	4	32	20-φ25
500	20	978	670	620	585	4	34	20-φ25
PN1.6MPa
15	1/2	108	95	65	45	2	14	4-φ14
20	3/4	117	105	75	55	2	16	4-φ14
25	1	127	115	85	65	2	16	4-φ14
32	5/4	140	135	100	78	2	18	4-φ18
40	3/2	165	145	110	85	3	18	4-φ18
50	2	203	160	125	100	3	20	4-φ18
65	5/2	216	180	145	120	3	20	4-φ18
80	3	241	195	160	135	3	22	8-φ18
100	4	292	215	180	155	3	24	8-φ18
150	6	356	280	240	210	3	28	8-φ23
200	8	495	335	295	265	3	30	12-φ23
250	10	622	405	355	320	4	32	12-φ25
300	12	698	460	410	375	4	34	12-φ25
350	14	787	520	470	435	4	38	16-φ25
400	16	914	580	525	485	4	40	16-φ30
PN2.5MPa
15	1/2	108	95	65	45	2	16	4-φ14
20	3/4	117	105	75	55	2	16	4-φ14
25	1	127	115	85	65	2	16	4-φ14
32	5/4	140	135	100	78	2	18	4-φ18
40	3/2	165	145	110	85	3	18	4-φ18
50	2	203	160	125	100	3	20	4-φ18

Applications :

Industrial Inorganic Chemicals
Industrial Organic Chemicals
Plant protective agent production
Alkalis & Chlorine
Detergent production
Water treatment
Bromine Production
Sulfur recovery
Nitrogenous & Phosphorus Fertilizer
Food Processing
Pharmaceutical Preparation
Sugar Industries
Petroleum Refining
